Chasing the Sweet Spot: Pinion and Spur Gear Combinations in RC
Ask ten RC hobbyists about the “best” pinion and spur combo, and you’ll probably get ten different answers. That’s because there really isn’t a single “perfect” setup—it all depends on your motor, track, battery, and what you’re trying to get out of your car. Still, there is an optimal balance to be found, and once you figure it out, your RC feels smoother, faster, and more reliable.
The Basics
The gearing in your RC is a lot like the gearing in a bicycle or full-size car. Your spur gear is the big one, mounted on the slipper or transmission, while the pinion gear is the smaller one bolted to your motor shaft. Changing the size of either changes your gear ratio.
-
A bigger pinion (more teeth) or smaller spur = higher top speed, but more strain on your motor.
-
A smaller pinion (fewer teeth) or bigger spur = more torque and cooler temps, but less top speed.
So in short: gear tall for speed runs, gear short for acceleration and durability.
Finding the “Optimal” Combo
The trick is to aim for a setup where your car has enough punch off the line without your motor cooking itself after five minutes. Most hobbyists will start with the manufacturer’s recommended gearing (usually listed in the manual) and tune from there.
One of the most important checks is motor temperature. After a solid run, touch your motor (or better yet, use an IR temp gun). If it’s scalding hot, your gearing is too tall—you’re asking the motor to do more than it can handle. If it’s cool, you’ve got room to gear up for more speed.
Battery and motor also play a role. A high-KV brushless motor on a LiPo can handle taller gearing than a brushed setup on NiMH. Likewise, a heavy 4WD buggy might need shorter gearing than a lightweight 2WD stadium truck, even with the same motor.
Real-World Hobbyist Tips
-
Listen to your car. If it bogs down or feels sluggish under acceleration, your gearing is too tall.
-
Check temps regularly. Staying under about 160°F (70°C) for brushless motors is a good rule of thumb.
-
Consider your track. Tight, twisty tracks usually reward shorter gearing (torque and response), while wide open tracks or speed runs benefit from taller gearing.
-
Slipper clutch matters. Don’t overtighten it—let it do its job, especially if you’re running aggressive gearing.
Final Thoughts
There’s no “magic number” for pinion and spur teeth counts—it’s all about balance. The optimal gearing is the one that gives you the speed you want and keeps your motor happy in the long run. For me, the fun part of the hobby is experimenting: swap in a different pinion, run a few packs, check temps, and see how the car feels. That’s how you really dial in your setup—and once you hit that sweet spot, your RC feels like a whole new machine.
Using BT01 as an example:

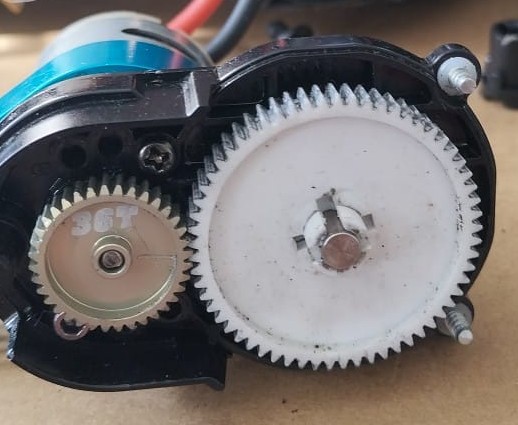

36T pinion and 61T spur seems to be the optimal for the BT01 given size limitation of the gearbox casing.
This is a 61T spur for TT01. Some plastic removed and it will fit into the BT01 gearbox perfectly.
