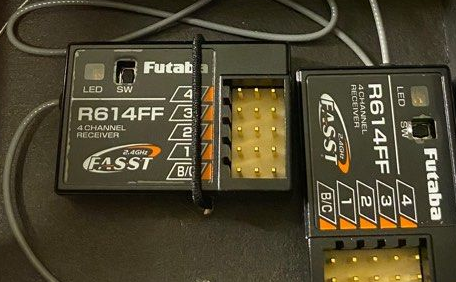

Lengthening the receiver antenna wire on a 2.4 GHz RC radio system will not improve the signal; it will actually make it worse. This is because 2.4 GHz operates at a very high frequency, with a wavelength of about 12.5 centimeters. The receiver antenna is designed to be precisely tuned to this wavelength, typically at a quarter of it — around 31 millimeters. This exact length is carefully matched to the radio’s electrical characteristics, ensuring efficient transmission and reception.
When you solder extra wire to extend the antenna, you disrupt this delicate tuning. The antenna becomes detuned and is no longer resonant at 2.4 GHz. As a result, some of the radio signal is reflected back into the circuit instead of being transmitted or received efficiently, which leads to a weaker overall connection. Additionally, longer wires can act as unwanted antennas, picking up electrical noise rather than useful signal, further degrading performance.
Antenna design at these frequencies is extremely precise — even a one-millimeter deviation can affect range and stability. That’s why manufacturers use specific materials and lengths, and why altering them usually causes more harm than good.
If you want better range or signal strength, it’s far more effective to ensure that the exposed end of the antenna remains straight, unobstructed, and positioned away from carbon fiber or metal parts. Mounting antennas at different angles, such as 90 degrees from each other, also helps improve reception by giving the receiver multiple orientation options to pick up the transmitter’s signal.
